New Outdoor IP68 Weatherproof Enclosure with Power Supply by TRENDnet

Enable seamless network connectivity across your business with TRENDnet's newest outdoor enclosure, compatible with their brand's industrial switches, fiber converters, and PoE injectors. Scroll down for a full product overview.

Download Announcement

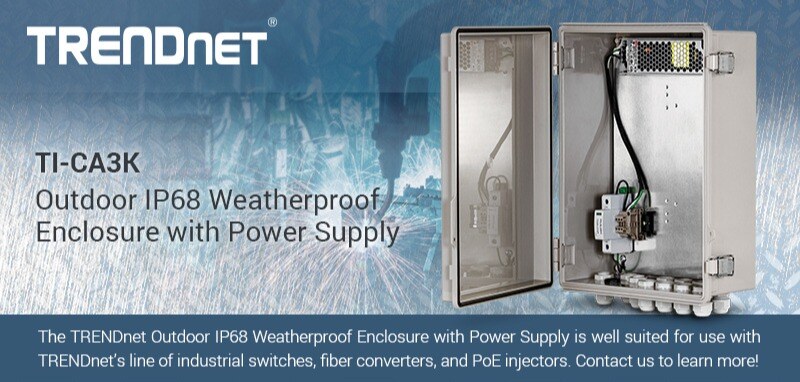

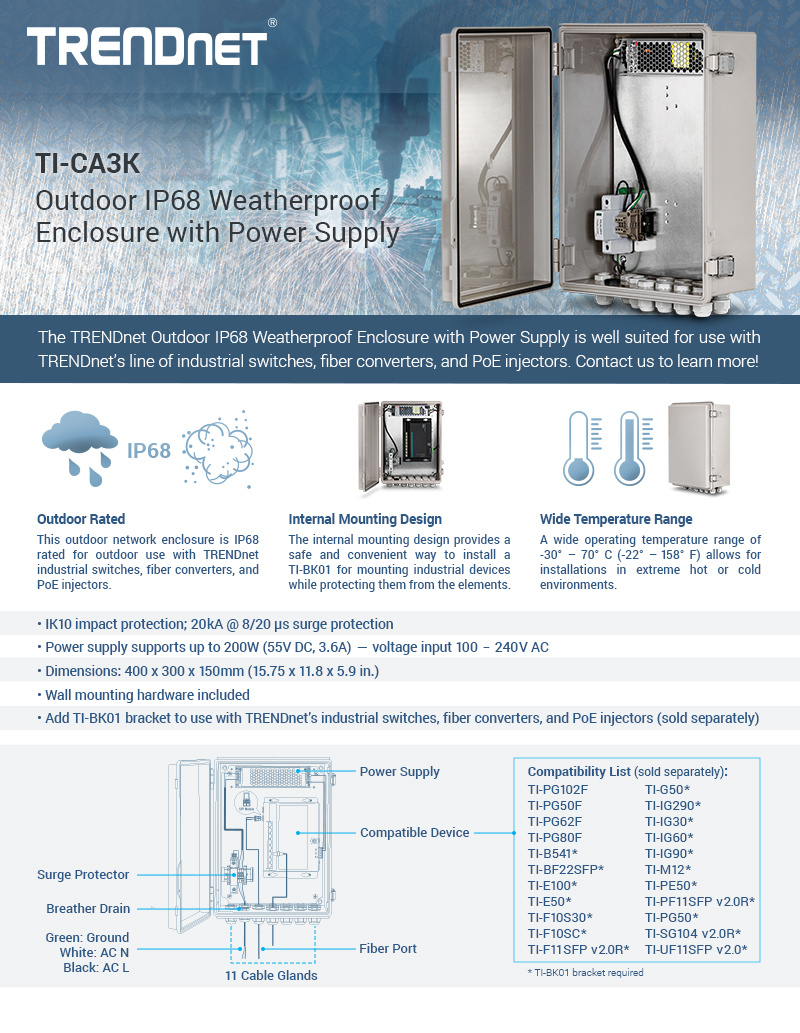

TRENDnet's Outdoor IP68 Weatherproof Enclosure with Power Supply

TI-CA3K (Version v1.0R)

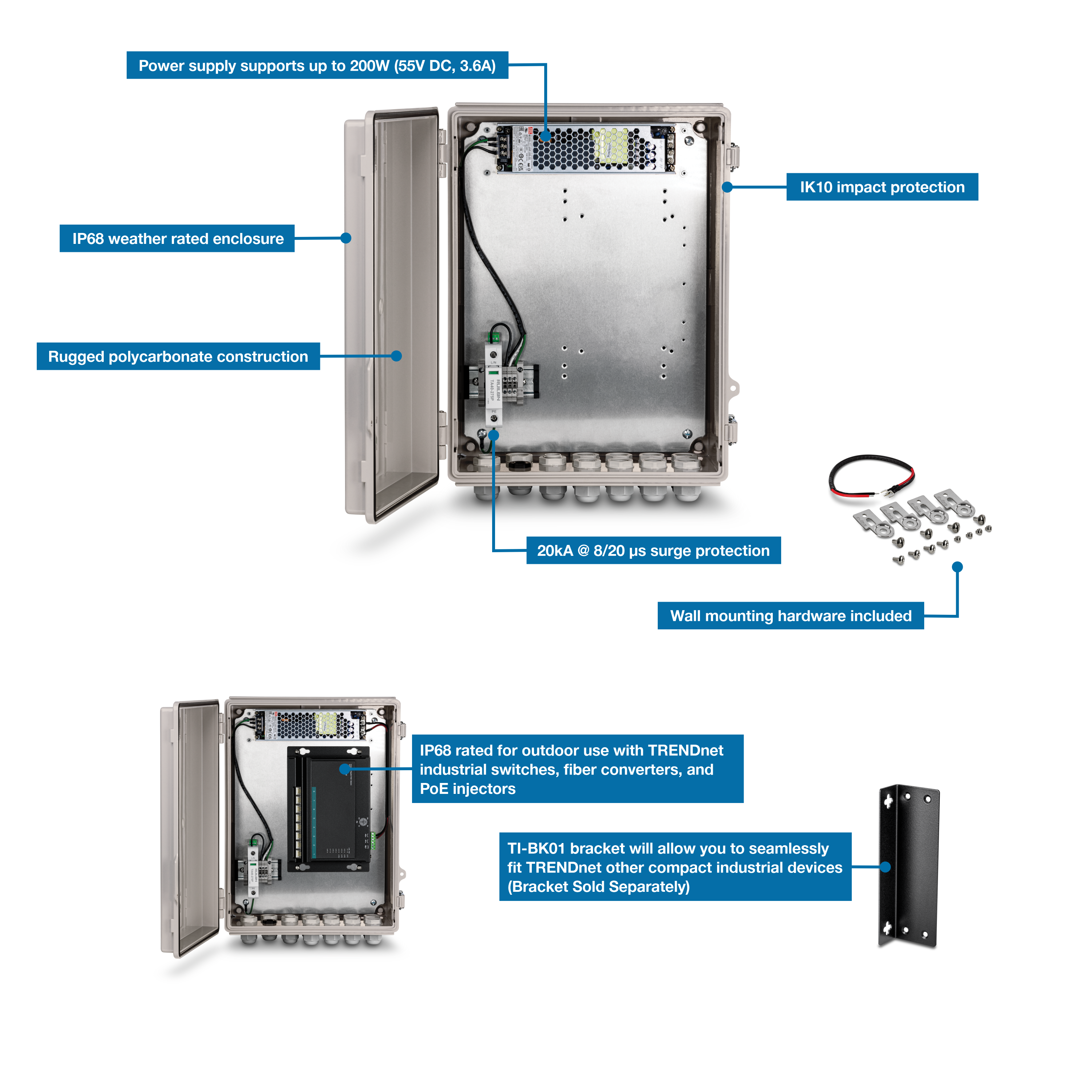

• IP68 weather rated enclosure

• IK10 impact protection

• Power supply supports up to 200W (55V DC, 3.6A)

• 20kA @ 8/20 μs surge protection

• Rugged polycarbonate construction

• Wall mounting hardware included

• Add TI-BK01 bracket to use with TRENDnet’s industrial switches, fiber converters, and

• PoE injectors (sold separately)

• NDAA / TAA compliant

Overview

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply is well suited for use with TRENDnet’s line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network enclosure provide a safe and convenient way to install industrial devices while protecting them from the elements.

An extreme operating temperature range of -30° – 70° C (-22° – 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 200W (55V DC, 3.6A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.

Outdoor Rated

IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.

Internal Mounting Design

The internal mounting design of the weatherproof network enclosure provide a safe and convenient way to install industrial devices while protecting them from the elements.

Housing Design

Rugged polycarbonate construction with IP68 weather protection.

Impact Protection

This outdoor network enclosure features an IK10 impact protection

Wall Mount

This outdoor network cabinet is designed to be installed on vertical surfaces.

Wide Temperature Range

A wide operating temperature range of -30° – 70° C (-22° – 158° F) allows for installations in extreme hot or cold environments

Surge Protection

20kA @ 8/20 μs surge protection.

TI-CA3K is secured with Lifetime Manufacturer Protection from TRENDnet. The Power Supply and Surge Protector come with 1-year Protection (U.S. and Canada Only)



Compatible Products

Downloadable Support for TI-CA3K (v1.0R)

• Data Sheet (English)

• Data Sheet (Español)

• Product Announcement

• Quick Installation Guide (English)
