Superior Essex Aluminum Interlock Armored MC Cables

by Paige Looney on March 23, 2015

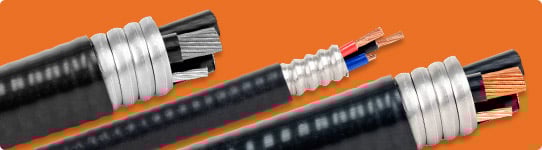

mh-aia

Superior Essex has developed Aluminum Interlock Armored MC LV Control and LV Power Cables that provide for an extremely well protected cable package. Rated at 90°C wet or dry locations, the Aluminum Interlock Armored line of MC cables also met the cold bend test at -25°C and are ideally suited for harsh environmentsThe aluminum interlock armored (AIA) design offers a solution for high traffic areas where added mechanical protection is required.

Applications:XLPE-AIA-PVC-Power-MC-serE3BF-1

    • Commercial, industrial and utility applications
    • Wet or dry locations
    • Free air, raceways, and direct burial
    • Approved for Class I, Div. 2, Class II Div. 2, and Class III Div. 1, industrial hazardous locations per NEC



To learn about applications and features for the Armored MC LV Control and LV Power lines, please download following the Product Data Sheets:

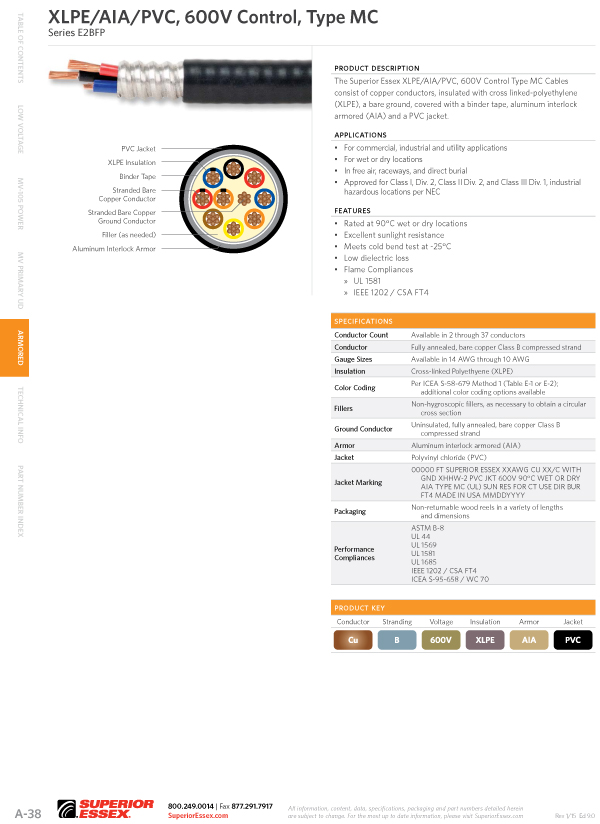

LV Control

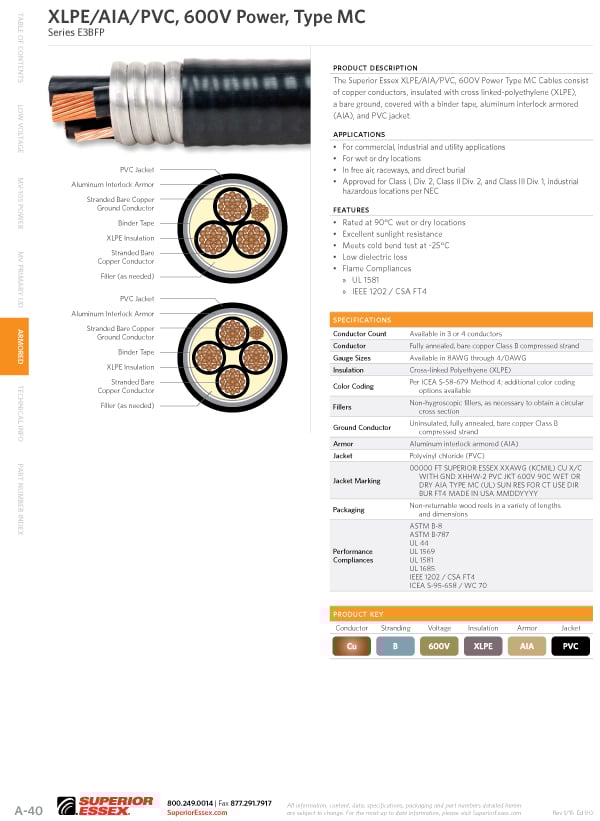

 LV Power

XLPE/AIA/PVC, 600V Power, Type MC

 XLPE-AIA-PVC-Control-MC-serE2BFP-1  XLPE-AIA-PVC-Power-MC-serE3BFP-1

For more information on Superior Essex's line of Aluminum Interlock Armored MC LV Control and LV Power Cables, or for any additional questions, please contact your local Accu-Tech representative today.
